Accessory Mount for Bontrager Saddles
Overview:

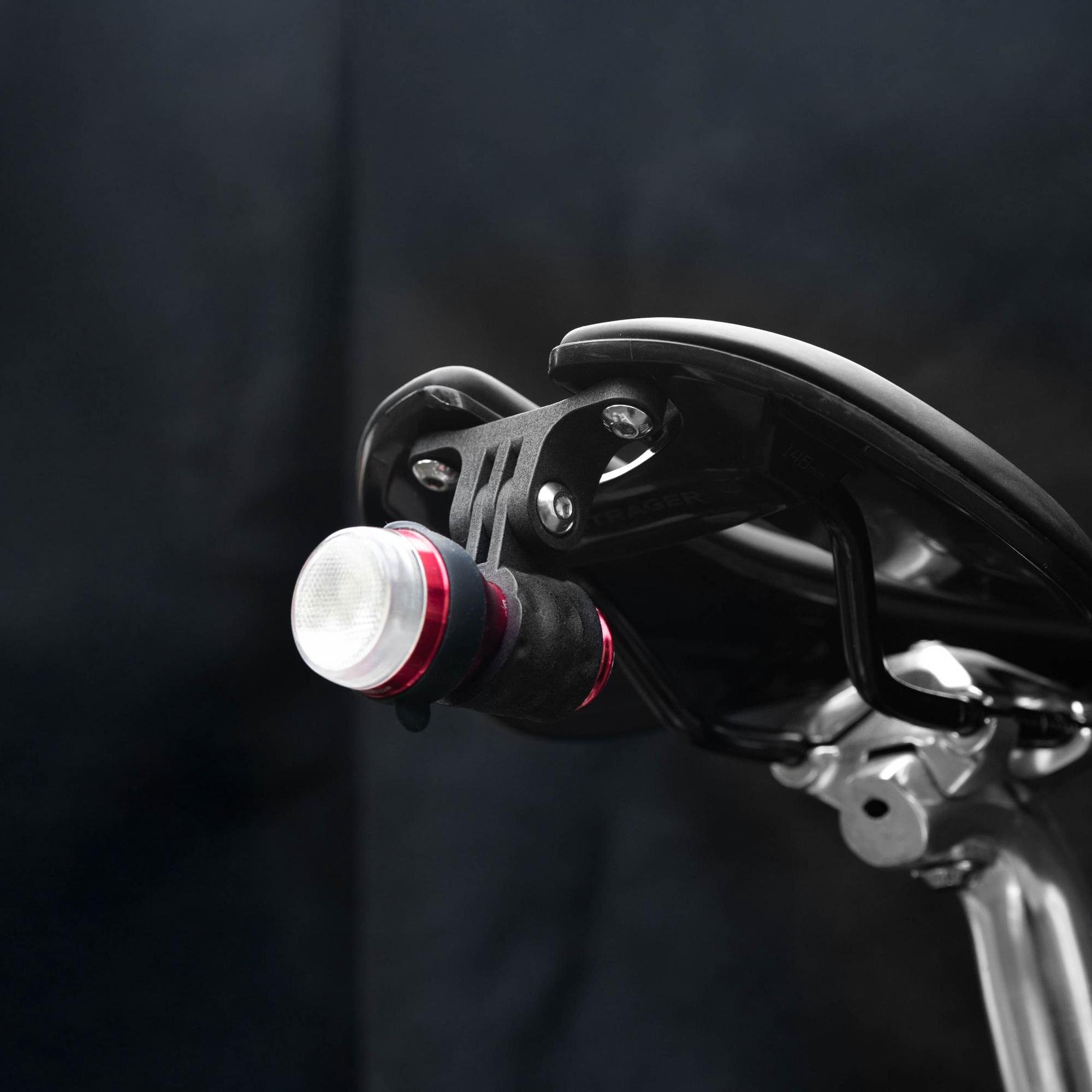

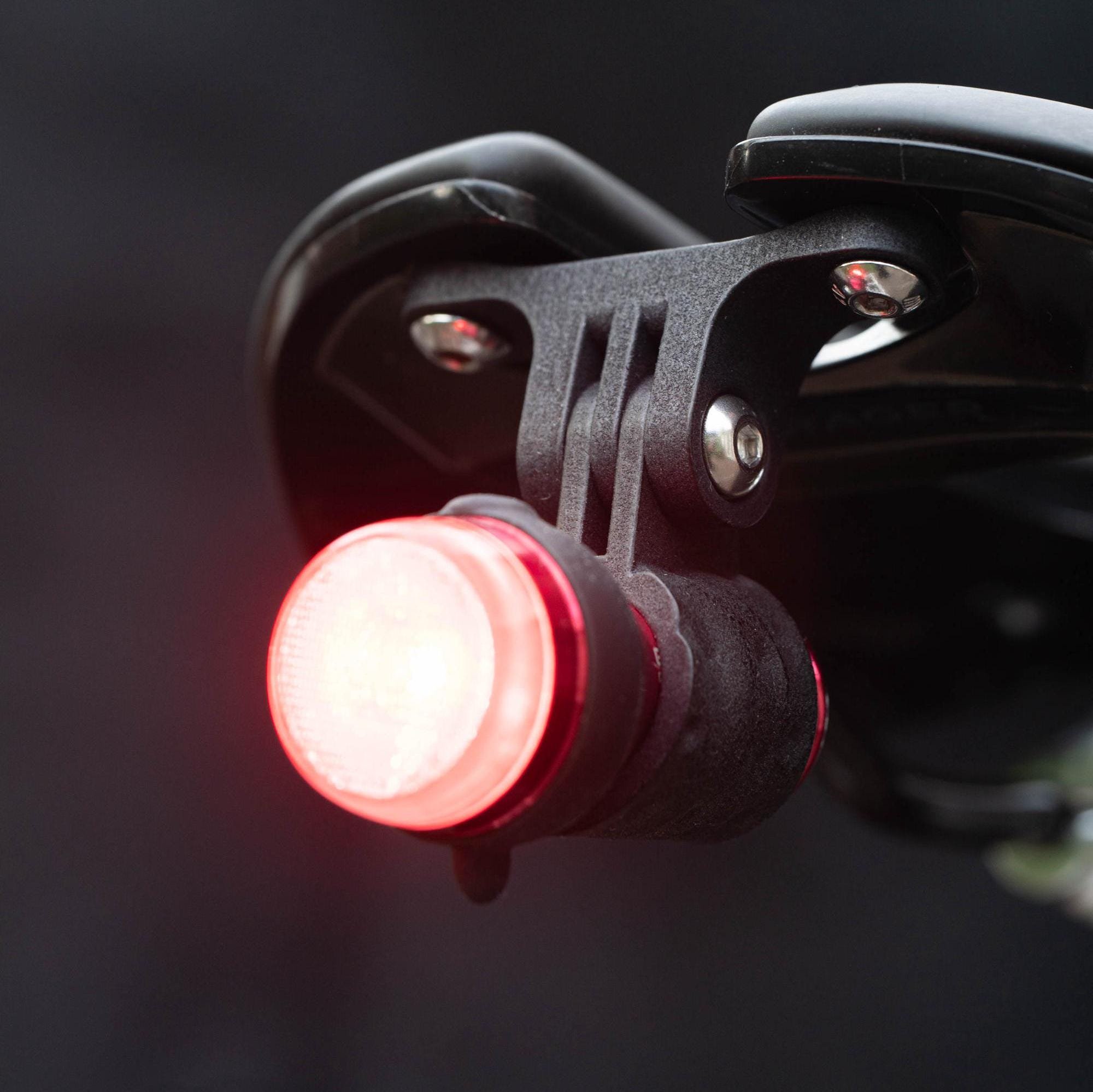

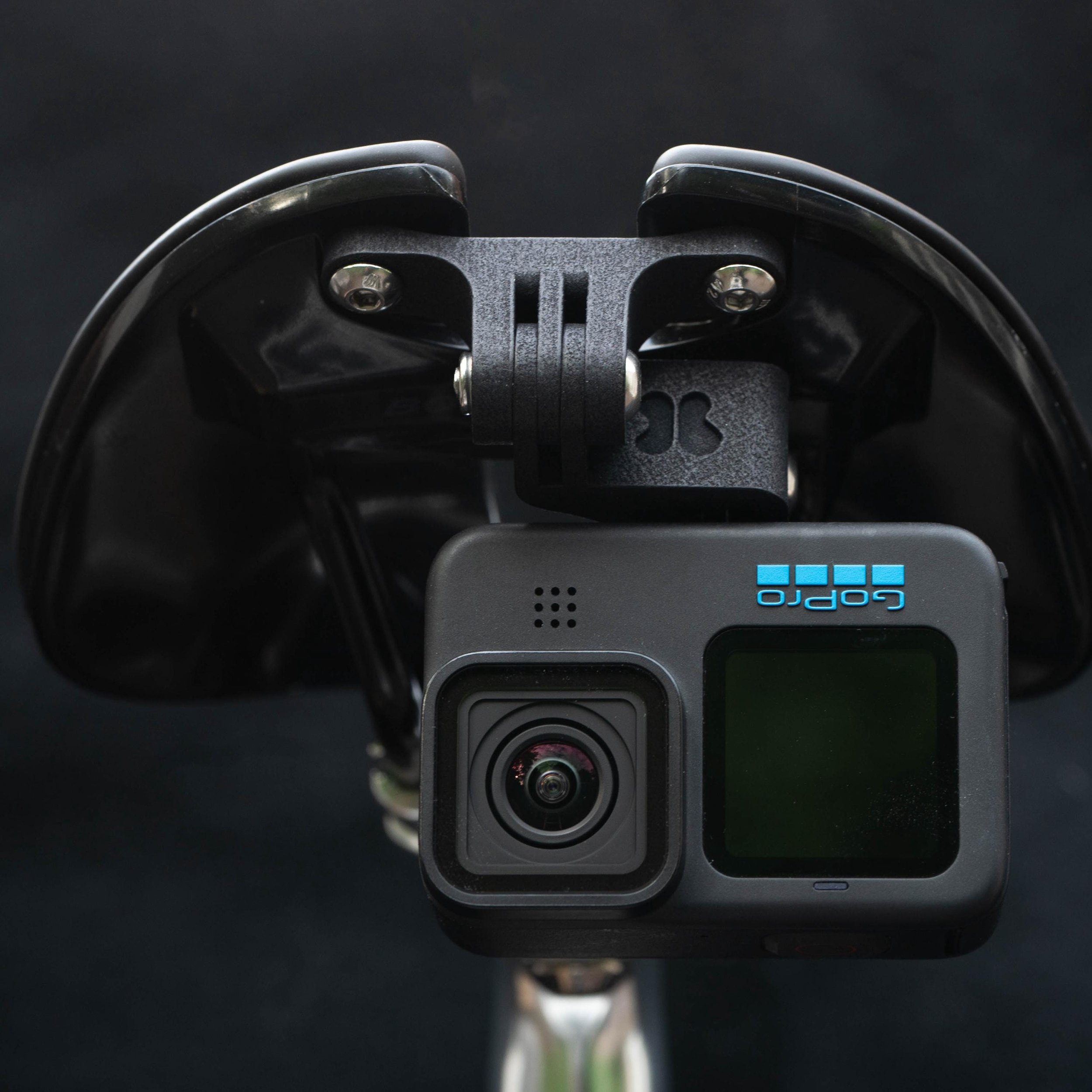

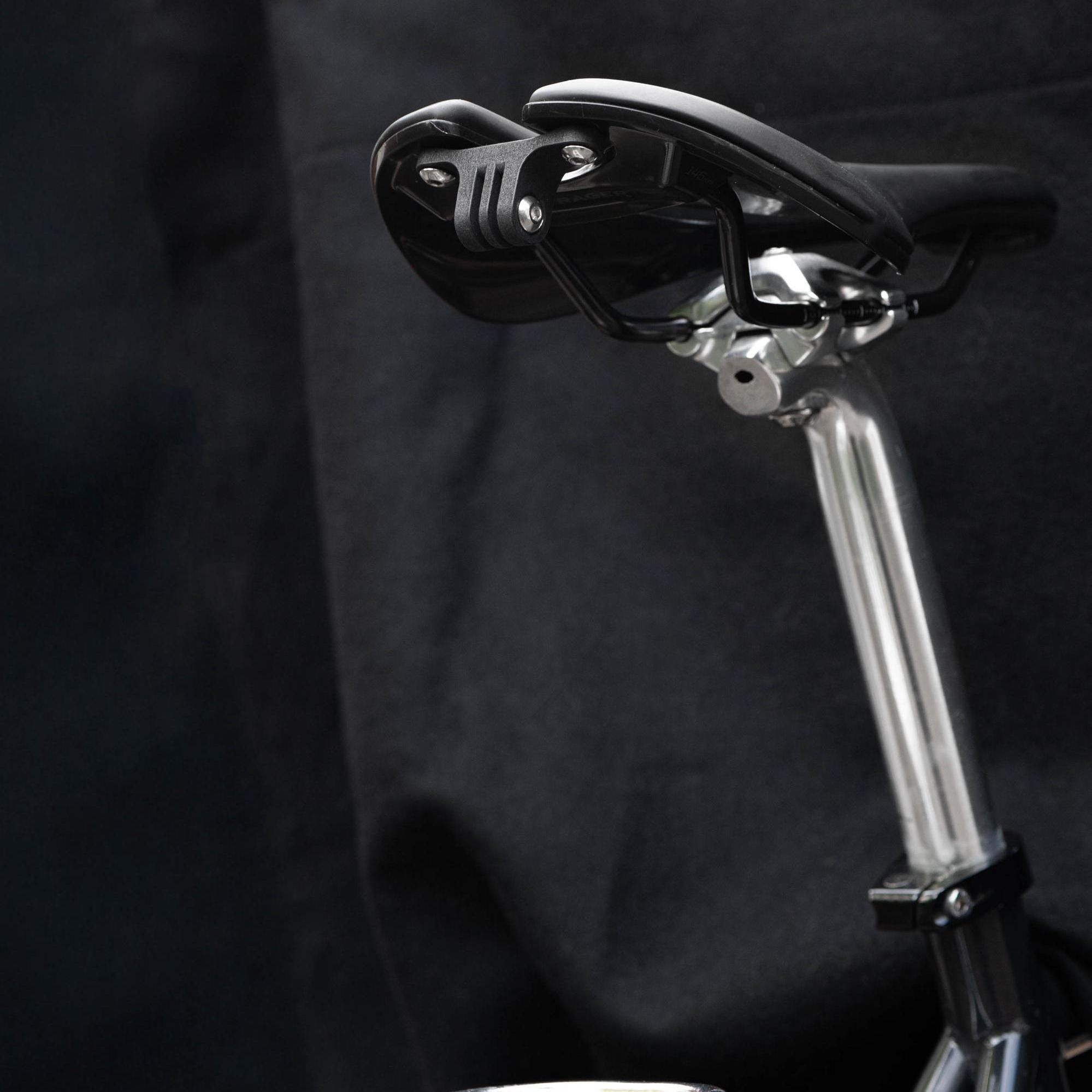

A simple way of mounting accessories to all Bontrager Blendr equiped saddles. This mount includes all the hardware necessary to get started.
Design:
The design brief for this mount was similar to that of the Specialized accessory, essentially a resized version of that mount. It incorporates everything we learned from those early iterations, including a tapered bolt recess for a secure press fit. This makes it both stronger and easier to set up, as the bolt won’t fall out during assembly. We also refined the design to reduce overall bulk.

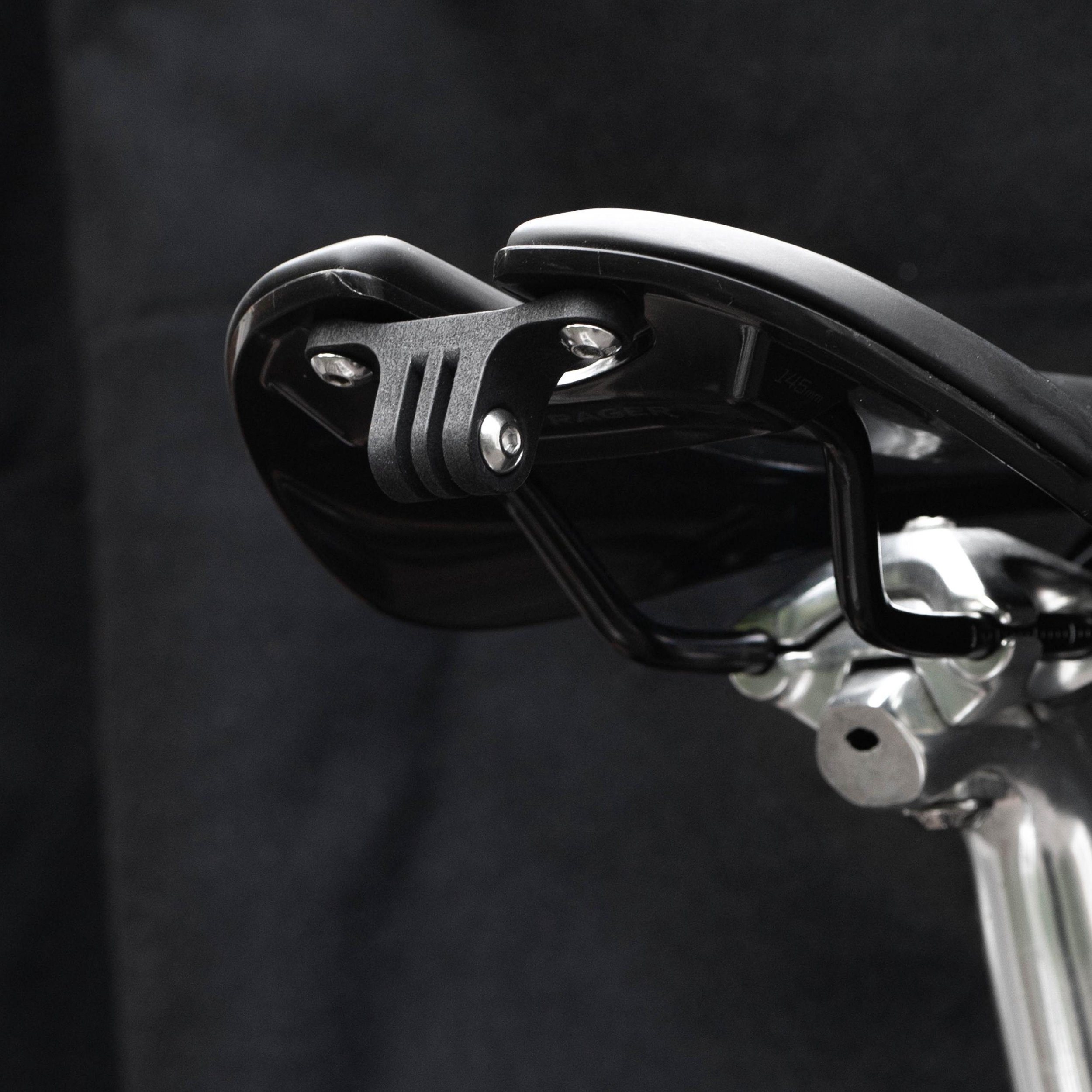

Additionally, we opted for a lower profile than most other Blendr accessories. While we initially had concerns about compatibility, this approach provides more space for larger accessories and contributes to a sleeker setup.
Requirements / Compatability:
Bontrager Blendr equip saddles. (Check for two bolt holes with a 40mm gap under your saddle)
Size & Weight:
57 x 27 x 15mm - 16g

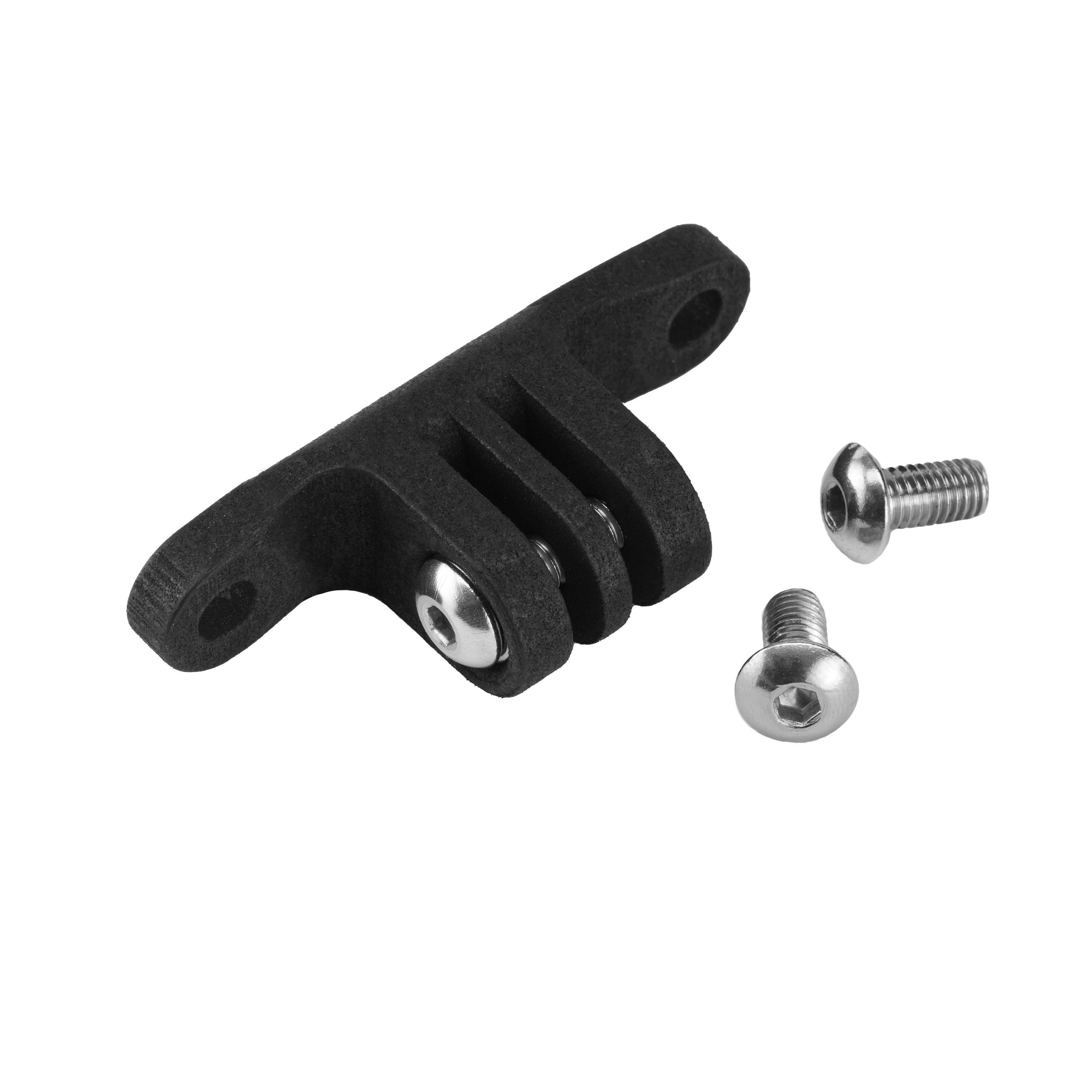

Included:
3bits Bontrager Mount
M5 20mm Bolt and locking nut
2 x M5 12mm Bolt
Manufacturing:
Manufactured by an industrial 3D printing company based in London.
